RVLithTime 12V 100AH LiFePO4 Lithium Battery For RVs, Camping, Trolling Motor and Off-Grid

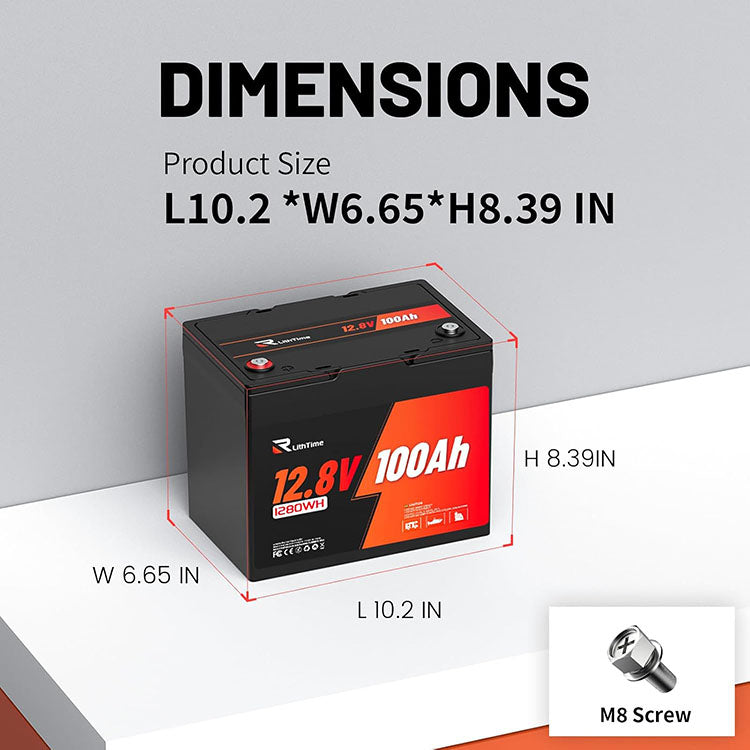

Group 24 Dimensions & Lightweight Design

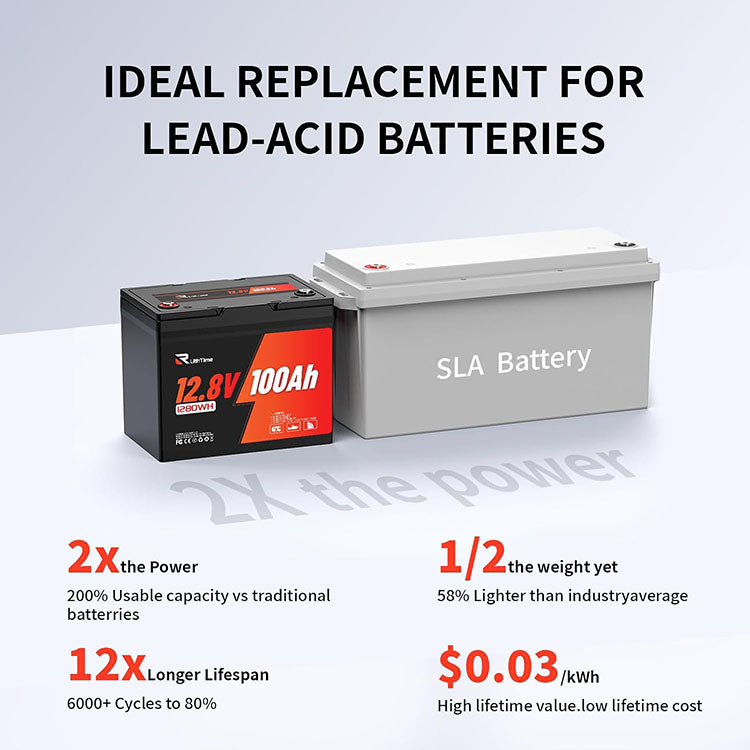

RVLithTime 12V 100AH LifePO4 lithium battery was built based on the BCI Group 24 standard dimensions, Features a standard lead-acid battery housing, Making it an ideal replacement for traditional 12V lead-acid batteries with Group 24. The ultra-compact size of our battery is L10.2*W6.65*H8.39 in (Group 24 Size) / 259*169*213 mm, It enables simple drop-in Group 24 battery for RV power systems, marine and off-grid energy storage systems, And it also compatible with Group 27 or Group 31 applications. The Weigh of RVLithTime 12V 100AH LiFePO4 battery only 21 lbs, lighter than 12V lead-acid batteries, making it easier to installation, transportation, and remove.

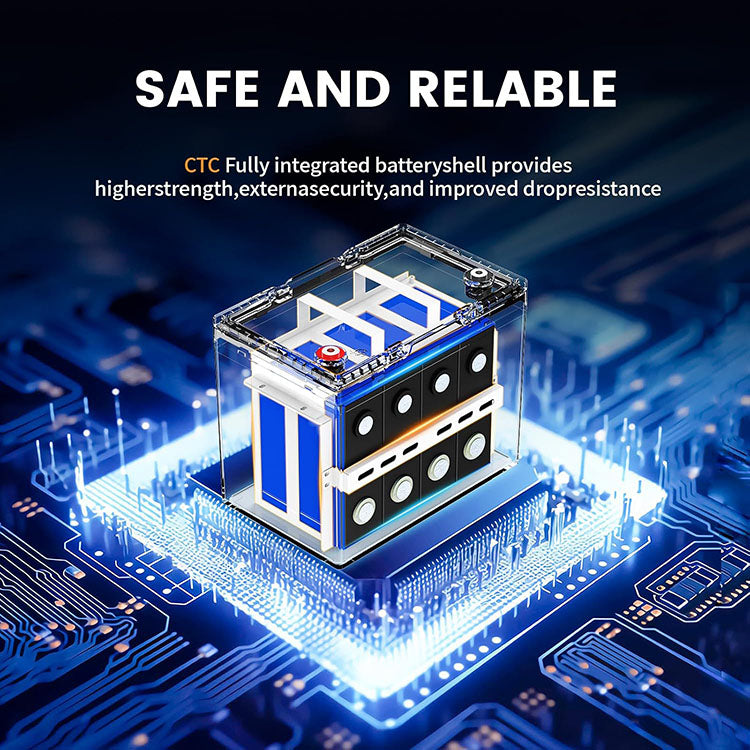

EV Grade-A LiFePO4 Cells, 10+ Years Service Life
RVLithTime 12V 100AH lithium batteries made with 3.2V premium EV grade-A LifePO4 cells, Delivers 4000 cycles @100%DOD, 6000 cycles @80%DOD, It offers up to 15,000 cycles and a service life of 10 years. The energy of one RVLithTime 12V 100ah lithium battery is 1280Wh, Support 1280W max load power. It supports expandable to Max 4S4P, supports up to 20.48KWh energy and 20.48KW powerful power.Β
100A Smart BMS & Full-Protection
RVLithTime 12V/12.8V 100AH lithium battery Featuring a 100A BMS, With overcharge, over-discharge, over-current, over-temperature, short circuits, Auto cell balancing Protection. Intelligent low-temperature cut-off protection. delivers 100A Max.continuous discharge current and a 3% ultra-low self-discharging rate.
Multiple Charging Options
RVLithTime 12V 100AH Battery support three ways to charge, You can charge the battery via a compatible LifePO4 AC charger, solar panels paired with an MPPT charge controller, or a generator with a DC-to-DC charging system. Important: Always use charging equipment specified for LiFePO4 batteries to preserve battery performance and battery life.
One Battery, Powerful Performance For Wide Applications
RVLithTime 12V 100ah LiFePO4 battery is engineered for RVs, marine vessels, trolling motors, camping, off-grid cabins, home energy storage and more. Compatible with most 12V power systems, It stands ready to fulfill all your power demands across diverse scenarios.

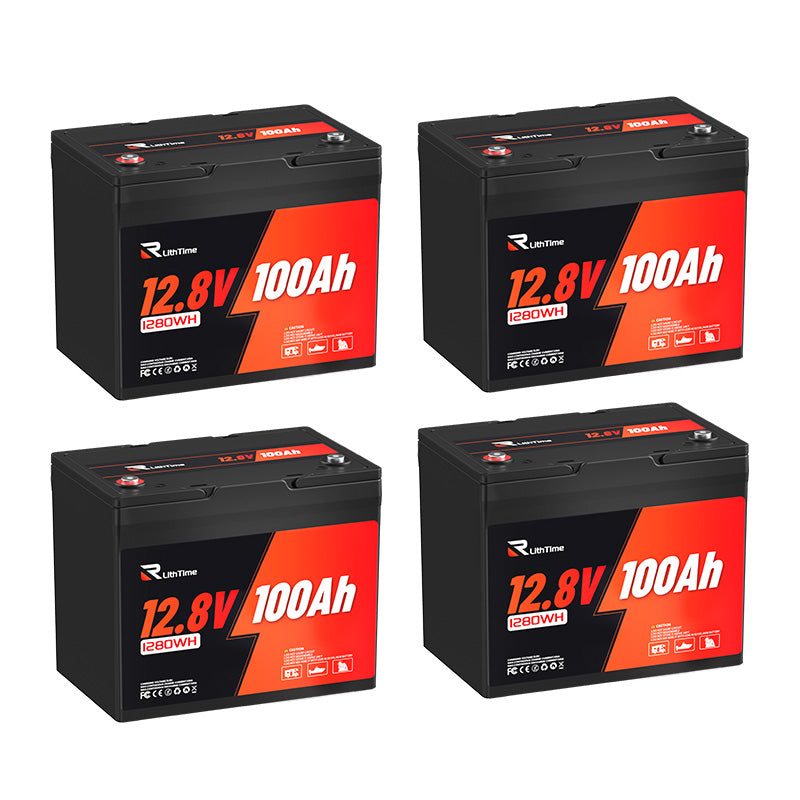

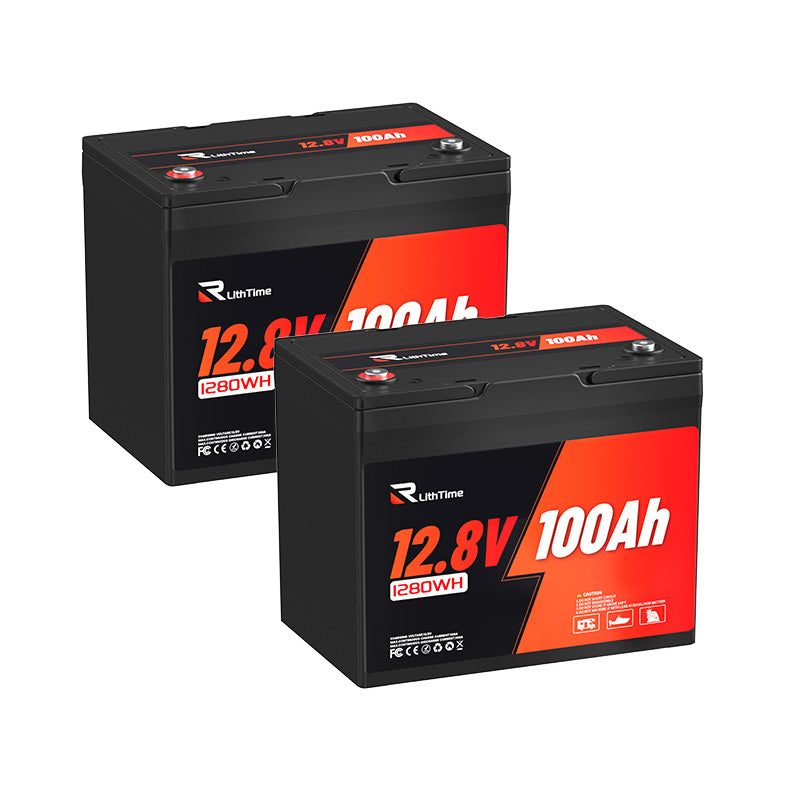

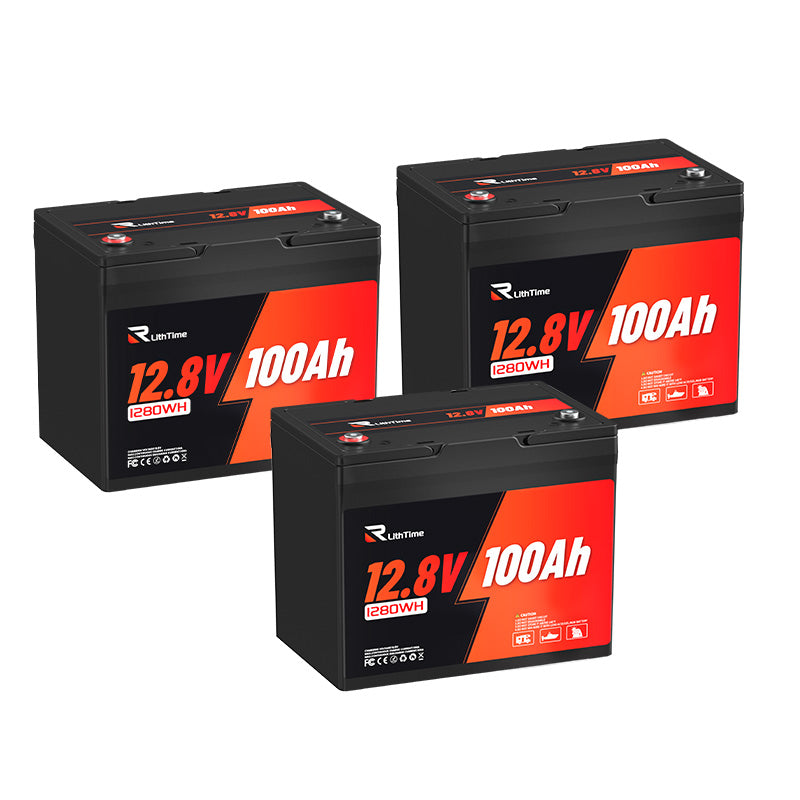

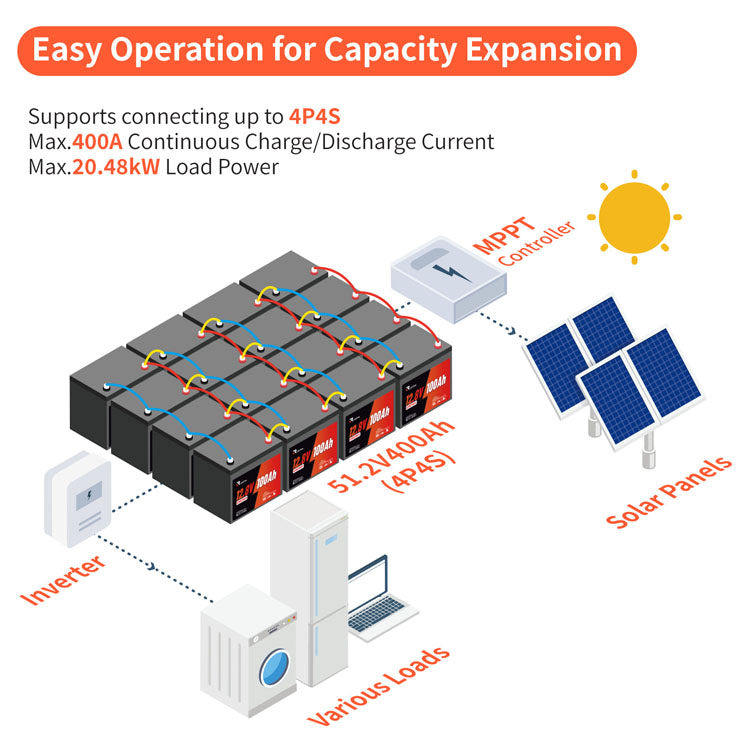

Supports series-parallel connection, Max 4S4P, Expandable up to 20.48kWh
RVLithTime 12V 100Ah lithium battery supports series-parallel connection, Up to maximum configuration of 4S4P, Connect 16 units in series-parallel to build a 48V(51.2V) 400AH battery pack, Β It delivers a substantial 20.48kWh energy reserve & maximum continuous discharge current of Β 400A & maximum load power of 20.48kW. Flexible series-parallel wiring lets you customize your energy system to power residential setups, marine vessels, camping, RVs, lawn equipment and off-grid installations, perfectly suited for applications demanding extended runtimes.
IP65 Waterproof for Harsh Environment Applications
RVLithTime 12V 100AH battery features an IP65 waterproof rating, Build with ABS housing, It delivers reliable protection against moisture, salt spray and dust, making it ideal for harsh working conditions.
RVLithTime 12V 100AH LiFePO4 Lithium Battery For RVs, Camping, Trolling Motor and Off-Grid
Estimated delivery between September 24 and October 01. Order within .
All orders ship from US local warehouse
1. Free standard shipping on all orders.Β We do not ship to Alaska (AK), Hawaii (HI), Puerto Rico (PR), APO/FPO/DPO addresses, or P.O. Boxes.
2. The delivery time takeΒ 2-6 business days, with a guaranteed to ship within 24 hour (1 business day).
3. Shipments are typically delivered via FedEx, UPS, or DHL Ground.
We offers a 30-day return policy, which means you have 30 days after receiving your item to request a return.
We will refund the price difference if our price drops within 30 days of your purchase.
Our batteries come with a 5-year warranty, effective from the date of purchase. Warranty eligibility is subject to proper installation and operation in compliance with the product manual. Please contact us for full warranty terms and technical support.
π For details or support, please contact info@rvlithtime.com
RVLithTime 12V 100AH LiFePO4 Lithium Battery, Built-in 100A Smart BMS, 12.8V 1280Wh Mini Group 24 Grade A Cell Deep Cycle Rechargeable Battery For RV & Camping, Trolling Motor, Marine, Home Energy Storage
Group 24 Dimensions & Lightweight Design
RVLithTime 12V 100AH LifePO4 lithium battery was built based on the BCI Group 24 standard dimensions, Features a standard lead-acid battery housing, Making it an ideal replacement for traditional 12V lead-acid batteries with Group 24. The ultra-compact size of our battery is L10.2*W6.65*H8.39 in (Group 24 Size) / 259*169*213 mm, It enables simple drop-in Group 24 battery for RV power systems, marine and off-grid energy storage systems, And it also compatible with Group 27 or Group 31 applications. The Weigh of RVLithTime 12V 100AH LiFePO4 battery only 21 lbs, lighter than 12V lead-acid batteries, making it easier to installation, transportation, and remove.
EV Grade-A LiFePO4 Cells, 10+ Years Service Life
RVLithTime 12V 100AH lithium batteries made with 3.2V premium EV grade-A LifePO4 cells, Delivers 4000 cycles @100%DOD, 6000 cycles @80%DOD, It offers up to 15,000 cycles and a service life of 10 years. The energy of one RVLithTime 12V 100ah lithium battery is 1280Wh, Support 1280W max load power. It supports expandable to Max 4S4P, supports up to 20.48KWh energy and 20.48KW powerful power.Β
100A Smart BMS & Full-Protection
RVLithTime 12V/12.8V 100AH lithium battery Featuring a 100A BMS, With overcharge, over-discharge, over-current, over-temperature, short circuits, Auto cell balancing Protection. Intelligent low-temperature cut-off protection. delivers 100A Max.continuous discharge current and a 3% ultra-low self-discharging rate.
Multiple Charging Options
RVLithTime 12V 100AH Battery support three ways to charge, You can charge the battery via a compatible LifePO4 AC charger, solar panels paired with an MPPT charge controller, or a generator with a DC-to-DC charging system. Important: Always use charging equipment specified for LiFePO4 batteries to preserve battery performance and battery life.
One Battery, Powerful Performance For Wide Applications
RVLithTime 12V 100ah LiFePO4 battery is engineered for RVs, marine vessels, trolling motors, camping, off-grid cabins, home energy storage and more. Compatible with most 12V power systems, It stands ready to fulfill all your power demands across diverse scenarios.
Supports series-parallel connection, Max 4S4P, Expandable up to 20.48kWh
RVLithTime 12V 100Ah lithium battery supports series-parallel connection, Up to maximum configuration of 4S4P, Connect 16 units in series-parallel to build a 48V(51.2V) 400AH battery pack, Β It delivers a substantial 20.48kWh energy reserve & maximum continuous discharge current of Β 400A & maximum load power of 20.48kW. Flexible series-parallel wiring lets you customize your energy system to power residential setups, marine vessels, camping, RVs, lawn equipment and off-grid installations, perfectly suited for applications demanding extended runtimes.
IP65 Waterproof for Harsh Environment Applications
RVLithTime 12V 100AH battery features an IP65 waterproof rating, Build with ABS housing, It delivers reliable protection against moisture, salt spray and dust, making it ideal for harsh working conditions.
BATTERY
Battery Model
12V 100Ah LiFePO4 Battery
Cell & Method
3.2V 100Ah 4S1P(UL9540/UL1973) Grade A LiFePO4 Cells
Nominal Voltage
12.8V
Nominal Capacity
100Ah
Energy
1280Wh
Dimensions
L10.2*W6.65*H8.39 in
Weight
11.5 kg
Cycle Life
οΌ6000 Cycles@80%DOD
Warranty
5 Years
BMS
Built-in BMS
100A
Max. Continuous Discharge Current
100A
Peak Discharge Current
200A(2 Sec)
Max. Load Power
1280W
CHARGE
Charge Method
CC/CV
Charge Voltage
14.6V Β± 0.2V
Recommend Charge Current
20A
TEMPERATURE
Discharge Temperature
-20Β°C to 60Β°C / -4Β°F to 140Β°F
Charge Temperature
0Β°C to 45Β°C / 32Β°F to 113Β°F
Storage Temperature
0Β°C to 40Β°C / 32Β°F to 104Β°F
OTHERS
Terminal Type
M8
Housing Material
ABS
Waterproof Rate
IP65
